The measurement accuracy of downhole attitude parameters directly determines the effectiveness of directional drilling trajectory control. MWD systems are subject to sensor inherent errors, dynamic vibration interference, and magnetic field distortions, resulting in complex deviations between raw outputs and actual attitudes. Relying solely on a single correction method cannot meet the stringent requirements for inclination and azimuth in horizontal and extended‑reach wells. This article presents a three‑stage compensation framework—"static calibration → dynamic filtering → nonlinear residual correction"—along with key technical specifications and engineering implementation points, for reference by field engineers and MWD professionals.
I. Three Major Sources of Errors
Static systematic errors: accelerometer bias (±5 mg), scale‑factor errors (±0.5 %), and inter‑axis non‑orthogonality (±0.1 °); fluxgate magnetometers are affected by remnant magnetism in drill collars, with equivalent magnetic declination up to ±2 °.
Dynamic vibration interference: axial shocks (peak 100 g), lateral vibrations (50–200 Hz), which overwhelm the gravity component and cause periodic oscillation in attitude computation.
Magnetization hysteresis effect: phase delay in fluxgate output during rotation, with azimuth error increasing with rotational speed.
II. Static Calibration and Linear Correction
Six‑position turntable calibration combined with least‑squares estimation for bias, scale factor, and non‑orthogonality matrix reduces error to ±2 mg.
Ellipsoid‑fitting constraint further eliminates residual non‑orthogonality, reducing static tool‑face angle error from ±1.5 ° to ±0.3 °.
III. Dynamic Adaptive Filtering
Standard EKF relies on fixed covariance and diverges under vibrating environments. An adaptive Kalman filter (AKF) is adopted, which updates the observation noise covariance R in real time to resist shocks.
[Image]
An improved Sage‑Husa algorithm estimates both Q and R simultaneously, with outlier threshold protection for innovation sequences. Under measured lateral vibration of 20 g, inclination error is ≤±0.15 °, a 40 % improvement in accuracy over standard EKF.
IV. Intelligent Compensation for Nonlinear Residuals
After linear correction and filtering, nonlinear residuals still remain, especially in azimuth computation under magnetic interference.
A wavelet neural network (WNN, three‑layer 6‑10‑3) is introduced, using filtered accelerometer, angular rate, and temperature data to predict residuals and correct attitude online.
Combined AKF+WNN: azimuth error is reduced from ±2.5 ° to ±0.5 ° (1σ), and inclination is stabilized within ±0.05 °.
V. Engineering Implementation Points

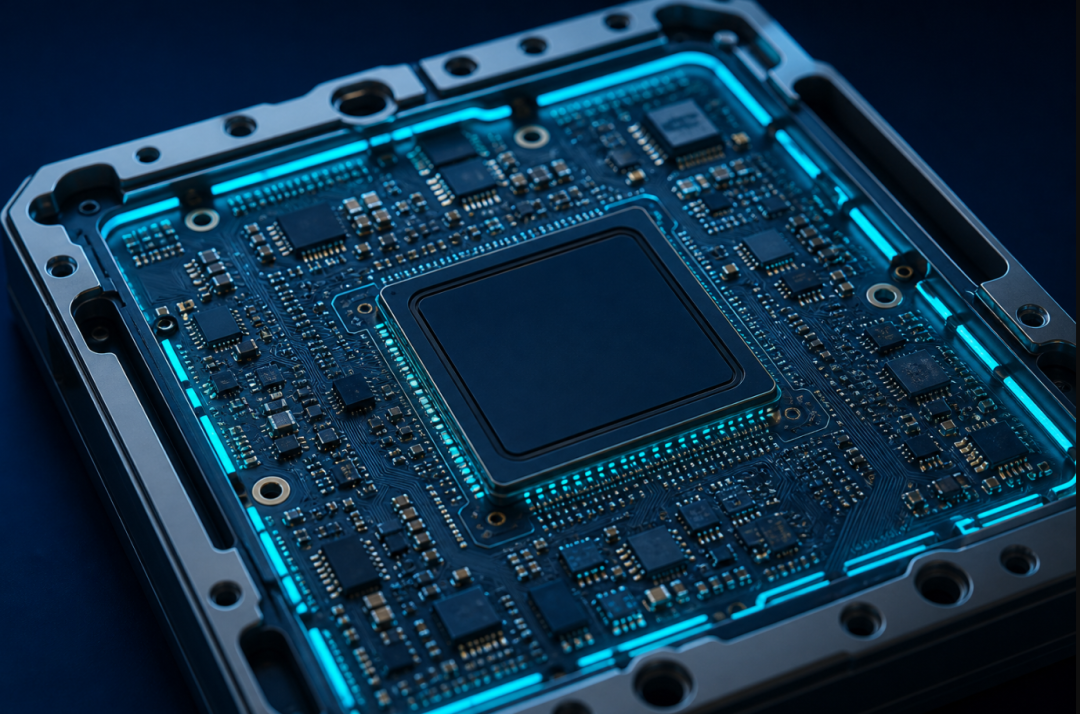

The algorithm is embedded in the downhole processor with time‑scheduled execution: calibration coefficients are fixed, while filtering and WNN run at 100 Hz, with single inference time <2 ms.
[Image]
During stoppages, static data are used to update filter initial values, suppressing cumulative drift.
The solution has been validated in multiple rotary‑steerable systems, with total error meeting horizontal‑well requirements.
Core conclusion: The three‑tier architecture of static calibration + adaptive filtering + neural‑network residual correction effectively copes with complex downhole vibrations and magnetic interference, achieving high‑precision attitude computation. Future direction: integrate gyro short‑term integration to build fault‑tolerant redundancy.
